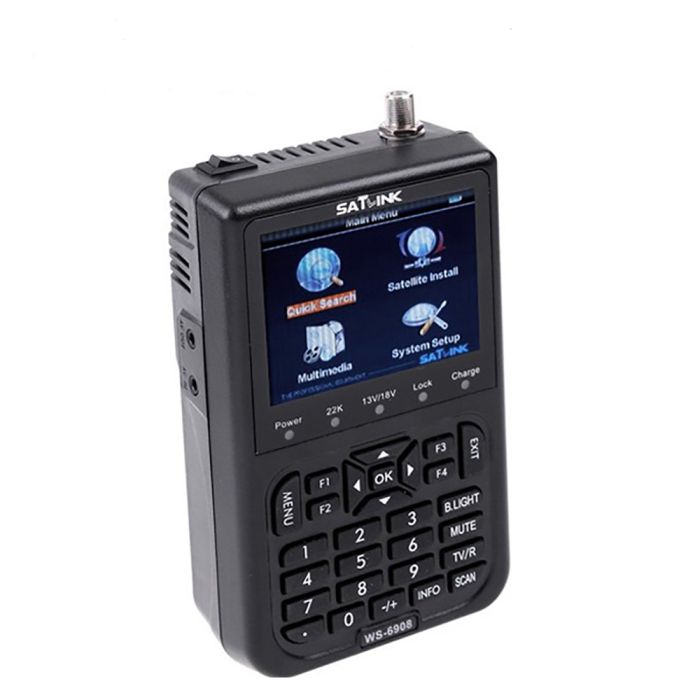

Satlink WS-6908 3.5" DVB-S FTA digital satellite meter satellite finder

Description:

WS6908 receive DVB-S signal, can quickly and accurately adjust the receiving antenna, alignment signal the strongest direction.

WS6908 uses microprocessor control, reliable performance, stable, on the LCD screen can display the program image and signal strength, signal quality of the signal bar, you can also choose to display large screen values.

WS6908 with display elevation / azimuth, CBER / VBER (bit error rate), S / N (signal to noise ratio)

The WS6908 can detect very weak signals, providing active antenna feed (OFF / 13V / 18V) and has overcurrent protection.

WS6908 has AV input and output function.

WS6908 use 12V power adapter, using 8.4V 3000mAH high-capacity lithium battery, full charge can be used continuously for more than 4 hours.

3.5 inch High definition TFT LCD Display

Support both AV out and AV in

Support Auto Satellite and PID Search

Both lock light and beep for the indicator of signal

Specifications:

- 3.5 Inch TFT LCD Screen Display

- Input Frequency: 950~2150MHz

- Input Level: -65~ -25dBm

- Input Impedance: 75Ω

- Measurement Type: signal strength,quality; BER; S/N;PWR

- Search Mode: Auto,Blind,Manual

- Sound and Light Alarm for Locking Signal

- Auto Calculate Angle of AZ ,EL

- Supportting DISEQC 1.0,1.1,1.2 and 22khz Tone

- LNB Power Supply:18/13V(IMax 400mA)

- Support both AV out and AV in

- Speaker Integrated

- 8.4V/3000mAh Lion Battery Included

- Max Operating Time:4 hours

- 12V/1.5A DC Adapter

- USB Port For Software Upgrades

Package contents

1 x WS-6908 Satellite Finder

  1 x Black Protective Bag

  1 x Strap

  1 x Car Charger

  1 x Power Adapter

  1 x AV Cable

  1 x CD
