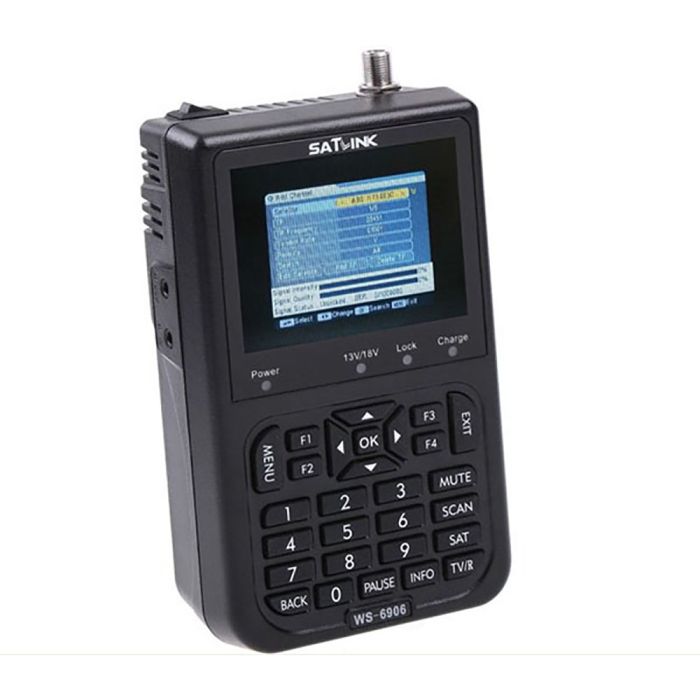

Satlink WS-6906 3.5" DVB-S FTA Digital Signal Finder Satellite Meter

More Views

Satlink WS-6906 3.5" DVB-S FTA Digital Signal Finder Satellite Meter #WS-6906

DEALS

Regular Price: $79.95

Special Price $69.95

Availability: In stock

Shipping time:7-25 business days
OR
Description

Details

Description

1) Satlink WS-6906 has a GREEN "LOCK" indicator light to positively ID the satellite you are looking for.

2) WS-6906 Satlink Satellite Signal Meter is simple and convenient for setting and aligning a satellite dish.

3) Using the parameters of satellite, you can set and align a satellite dish quickly.

4) Satlink WS6906 Meter can easily and accurately aim your dish plus View the channel while aiming the dish.

5) It includes high capacity Lithium Battery 3000mAh which works for more than 4 hours after fully charged.

Features

  •  3.5 inch High definition TFT LCD Display
  •   Fully DVB-S/MPEG-2 compliant
  •   SCPC&MCPC receivable from C/KU band satellites
  •    PAL-NTSC auto-conversion
  •    Support Auto ,NIT and PID search
  •    Measure Parameters: intensity, quality and bit error rate
  •    Supports DiSEqC 1.0/1.2, 0/22Khz Tone
  •    Support both AV out and AV in
  •    Both light and beep for the indicator of signal locked
  •    RS232 port for software upgrades
  •    Built-in speaker
  •    LNB short protect and alarm
  •    Easy Graphic Menu Interface
  •    7.4V/3000mAh Li-ion battery included
  •    Max operating time: 4 hours

System capabilities

Fully DVB compliant

Yes

LNB/Tuner input

Connector

F type,male

Frequency range

950MHz-2150MHz

Signal lever

-65dBm~-25dBm

LNB supply

13/18V,max400mA

LNB switch control

22KHz

DiSEqC

Ver 1.0

Demodulator

Front end

QPSK

Symbol rate

2Mbps~45Mbps

SCPC and MCPC Capable

Yes

Spectral inversion

Auto conversion

System resource

Processor

32bit processor (200MHz)

SDRAM

16Mbyte

FLASH

2Mbyte

EEPROM

8Kbyte

Video decoder

MPEG 2

Main [email protected] Level

Data Rate

up to 15M bits/s

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

MPEG Audio

MPEG 1 layer 1&2



Type

Mono

Sampling rates

32,44.1 and 48KHz

Serial data interface

Connector

USB type

Power supply

Li-oN Battery

1950 mA

Supply voltage

12.6Volt

charger

90-240V

Panel connectors

Digital tuner input

F type, male

Physical Specification

Size

9.5x15.5x4.5 (cm)

Weight(Net)

0.85 Kg

Package contents

     - 1x WS-6906 Satellite Finder

     - 1x Black Protective Bag

     - 1x USB Upgrade Cable

     - 1x Strap

     - 1x Car Charger

     - 1x Power Adapter

     - 1x AV Cable

     - 1x English User Manual
