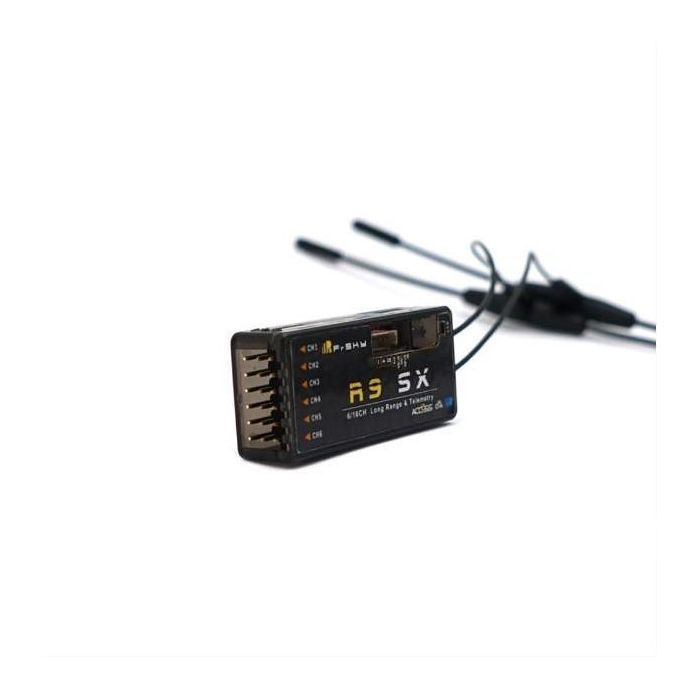

FrSky R9SX Upgraded 900mhz R9 Series Access OTA Long-Range Receiver
Frequency: 868MHz / 915MHz
Dimension: 36 * 17 * 7mm / 47.5 * 20.5 * 11mm (including case and pins)
Weight: 8.8g / 13g (including case and pins)
Specifications:
Frequency: 868MHz / 915MHz
Dimension: 36 * 17 * 7mm / 47.5 * 20.5 * 11mm (including case and pins)
Weight: 8.8g / 13g (including case and pins)
Numbers of channel: 6 PWM / 16 SBUS (CH16 outputs RSSI)
Operating voltage: DC 3.5V ~ 12.6V
Operating current: <100mA @ 5V
Compatibility: R9M Lite / R9M Lite Pro / R9M 2019 with ACCESS firmware
Feature:
ACCESS protocol and supports OTA functions
900MHz / 868MHz long-range with low latency
Upgraded and durable design
6 standard servo connections (standard PWM channel)
Switchable CH5 / CH6 in S.Port / SBUS output channels
Support S.Port / F.Port (configurable in OpenTX / FrOS menu)
Signal redundancy function
External battery detection
Package include:
1 pcs FrSky R9SX
-
