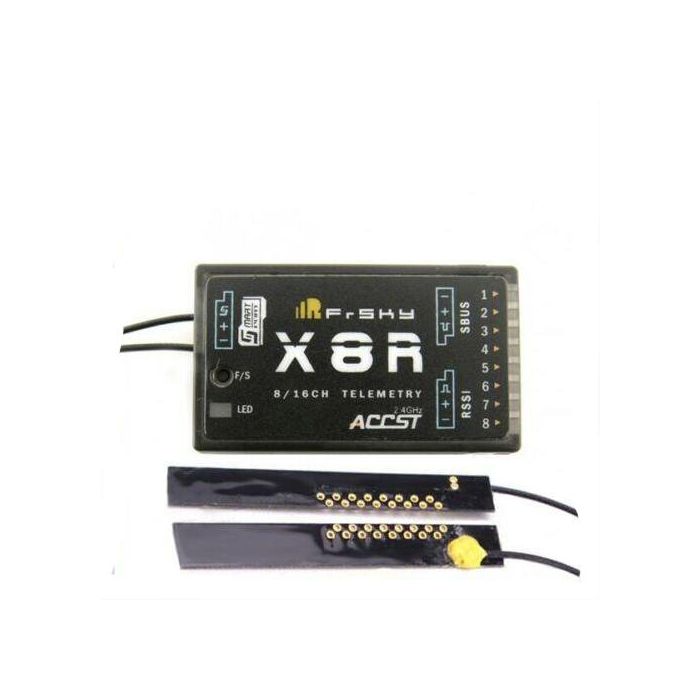

FrSky X8R Receiver 8CH / 16CH Telemetry For RC Quadcopter Multicopter Compatible with X7 X9D X12S transmitter

This version is fcc global version,if you need eu version,you can update it by yourself.

The X8R is in a Smaller package than previous 8 channel receivers but has so much more capability. The new SmartPort supports the new hub-less sensors as well as the older hub analog sensors.The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.The X8 protocol is also backward compatible! In D8 mode it works with the DHT, DJT, DFT and DHT-U transmitter modules.

Risq original factory two-way receiver. Dual channel dual antenna.

With RSSI output, two-way full-duplex transmission can be realized.

Compatible with FRSKY X7 X9D X12S remote control.

Support PWM normal 8 channel output or SBUS 16 channel output.

Specitification:

D8 mode: FrSky Taranis X9D / XJT / DFT / DJT / DHT / dht-u

D16 mode: FrSky Taranis X9D / XJT

Channel number: 8 channels / PWM 16 channels / SBUS

Size (mm): H 14.2 W 26.6 L 46.2

Operating voltage: 4-10v

Working current: 100ma / 5V

Effective distance:> 1.5 KM

RSSI output: analog voltage output (3.3V)

Package include:

1pcs FrSky X8R
