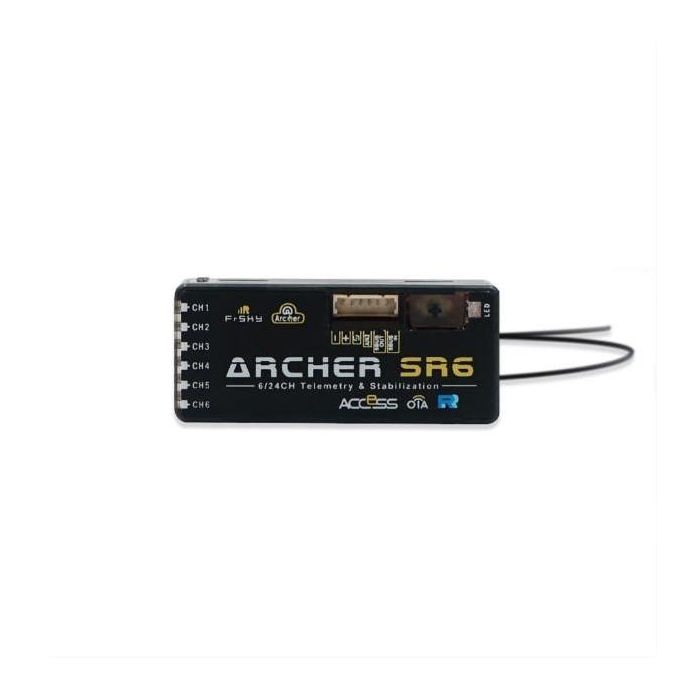

FrSky Archer SR6 2.4GHz 6Channel Self Stabilized Receiver For Fixed Wing Drone

Feature:

ACCESS protocol with Over The Air (OTA)

Built-in 3-axis gyroscope and 3-axis acceleration sensor

Multiple flight modes and configuration methods (LUA & Freelink)

Supports signal redundancy (SBUS In)

* Different from ACCST SXR receivers, the SBUS IN signal can be adjusted through the STAB module of SR6 when the STAB function is activated.

Full control range with telemetry

S.Port / F.Port / F.Port 2.0

External battery / device voltage detection

Specitification:

Dimension: 47.5 * 20.5 * 11mm (L * W * H)

Weight: 13g

16/24 configurable SBUS channels

6 high-precision PWM channels

Operating voltage range: 3.5-10V

Operating current: <60mA @ 5V

Control area: Full range * with telemetry

(* Full Range:> 2km, range may vary based on local conditions.)

Voltage measuring range via AIN2 (external device): 0-3.3 V.

Compatibility: All FrSky ACCESS transmitters

Package include:

1 pcs FrSky Archer SR6
