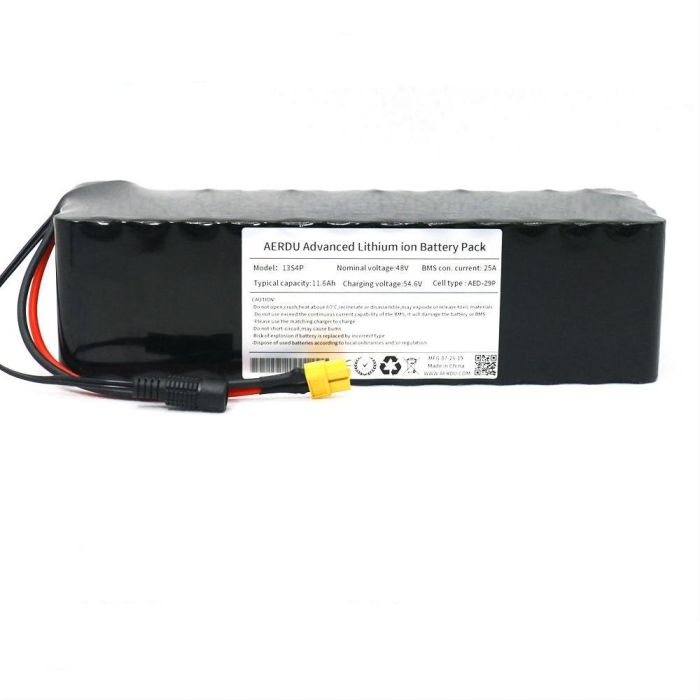

48V 13S4P 11.6Ah 1000W 18650 Li-ion Battery Pack For Electric Bicycle With 25A BMS (1pcs)
Cell count: 52 pieces（13S4P）
Nominal voltage: 48V
Charge voltage: 54.6V
Typical capacity: 11.6Ah/556Wh
Specifications:
Cell type: AED-29P( 2.9Ah)
Cell count: 52 pieces（13S4P）
Nominal voltage: 48V
Charge voltage: 54.6V
Typical capacity: 11.6Ah/556Wh
Minimum capacity: 10.4Ah/499Wh
Rated power: 1000Watt
BMS rated current: 25A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: T type plug for discharge and DC5521 for charge
Output voltage range: 36.4V-54.6V
Discharge cut-off voltage: 36.4V
Charge cut-off voltage: 54.6V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles
Size: 240* 80 * 70 mm(±3mm)
Weight: 2300g(±50g)
Package include:
1pcs battery
