36V 10S3P 9.6Ah 600W Li-ion Battery Pack For Electric Bike With 20A BMS (1pcs)

Specifications:

Cell type: AED-32P( 3.2Ah)

Cell count: 30 pieces（10S3P）

Nominal voltage: 36V

Charge voltage: 42V

Typical capacity: 9.6Ah/345Wh

Minimum capacity: 8.6Ah/309Wh

Rated power: 600Watt

BMS rated current: 20A discharge and 5A charge

BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

Connector: XT60 for discharge and DC5521 for charge

Output voltage range: 28V-42V

Discharge cut-off voltage: 28V

Charge cut-off voltage: 42V

Charge method: CC-CV

Max. Charge current: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

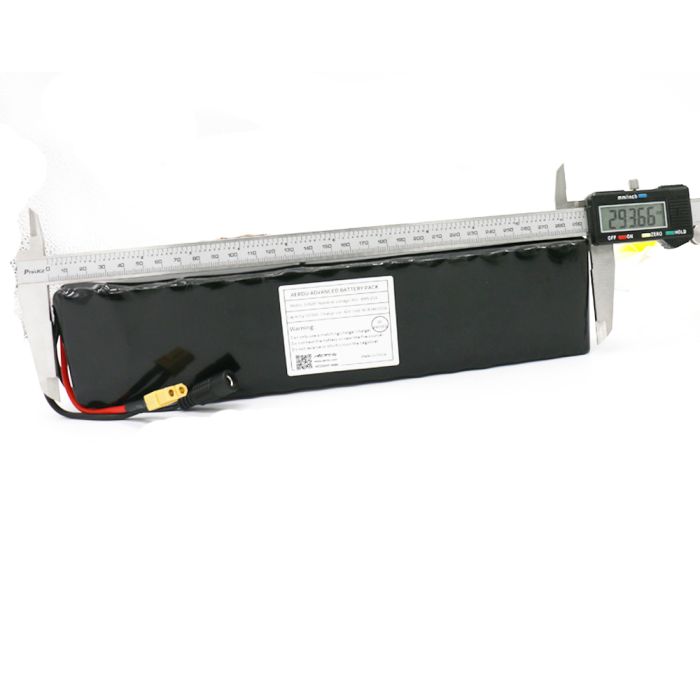

Size: 285 * 70 * 40 mm(±3mm)

Weight: 1500g(±50g)

Package include:

1pcs battery
