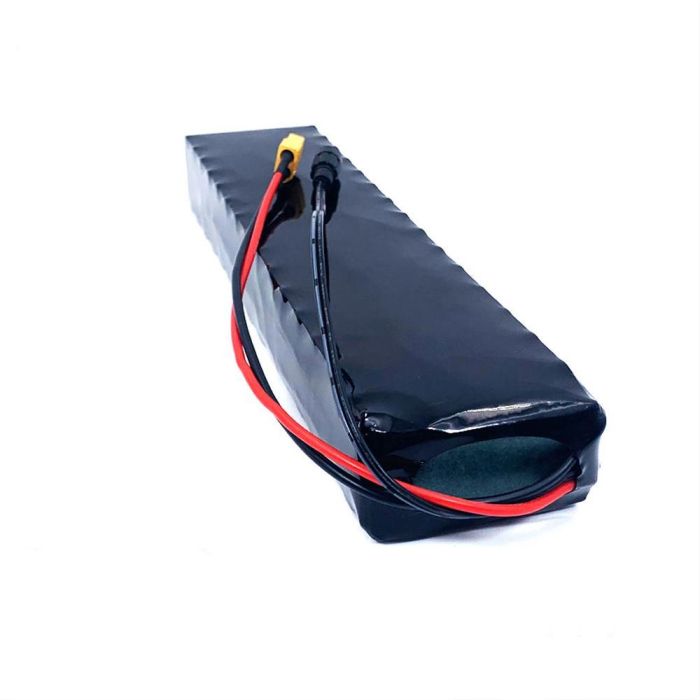

10S3P 36V 7.5Ah Lithium Battery Pack with 20A BMS For Xiaomi Mijia M365 Pro Electirc Bicycle Scooter (1pcs)
Nominal voltage: 36V
Charge voltage: 42V
Typical capacity: 7.5Ah/270Wh
Specification:
Cell type: KLS-25P (2.5Ah)
Cell count: 30 pieces(10S3P)
Nominal voltage: 36V
Charge voltage: 42V
Typical capacity: 7.5Ah/270Wh
Minimum capacity: 6.75Ah/243Wh
Rated power: 600Watt
BMS rated current: 20A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: XT60 for discharge and DC5521 for charge
Package: heat shrinkable PVC, random color
Output voltage range: 28V-42V
Discharge cut-off voltage: 28V
Charge cut-off voltage: 42V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles
Size: 285 * 70 * 40 mm(±3mm)
Weight: 1500g(±50g)
The battery pack does not have a communication cable. If the original battery of your electric bicycle needs to communicate with the controller, this battery cannot be used to replace the original battery. It can only be used to extend the battery.
Warranty
Period: 1year
Coverage: Cells, other part are not covered by the warranty.
Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.
Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.
Application
Suitable for less than 600W all 36V DC equipment. E-bike, scooters, etc.
Package include:
1pcs battery
