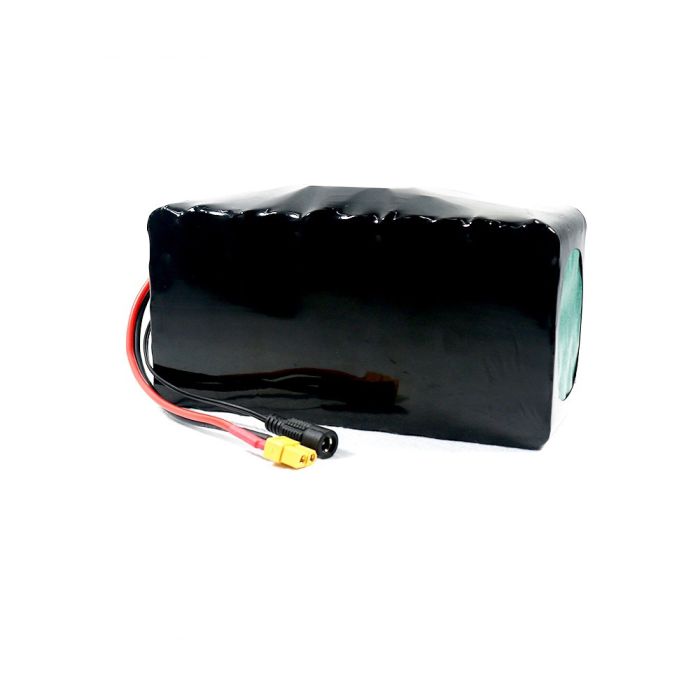

36V 10S5P 16AH Li-ion Battery Pack XT60 Plug For Electric Bicycle with 25A BMS (1pcs)
Cell count: 50 pieces（10S5P）
Nominal voltage: 36V
Charge voltage: 42V
Specifications:
Cell type: AED-32P( 3.2Ah)
Cell count: 50 pieces（10S5P）
Nominal voltage: 36V
Charge voltage: 42V
Typical capacity: 16Ah/576Wh
Minimum capacity: 14.4Ah/518Wh
Rated power: 750Watt
BMS rated current: 25A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: XT60 for discharge and DC5521 for charge
Output voltage range: 28V-42V
Discharge cut-off voltage: 28V
Charge cut-off voltage: 42V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles
Size: 190 * 108* 70 mm(±3mm)
Weight: 2400g(±50g)
Package include:
1pcs battery
