Viecar ELM327 V1.5 BT4.0 OBD2 Scanner Car Auto Diagnostic Tool Compatible with Android/IOS

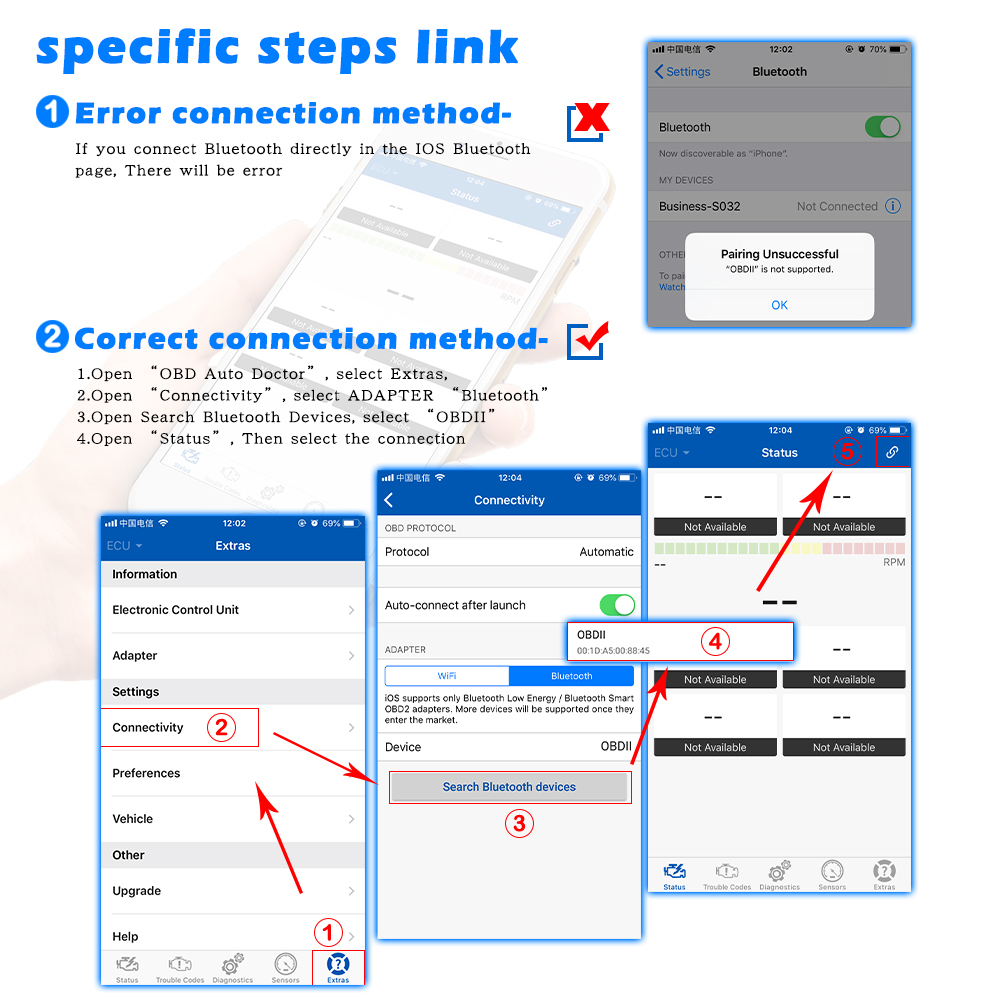

Notice for Bluetooth connection (important)

1.Open the Wireless first(But please do not connect the product to the setting Wireless page of your phone,this way is wrong！！！)

2.Open the software(like AUTO Doctor)

3.Choose "Extras"，then click "Connectivity "，choose"Wireless"，and click "Device",choose "Viecar BLE"

4.Connect Wireless in the"Connectivity "，then close the software or refresh software,open software again,then connect to the car again

Software features:

Software can perform the following operations:

Read error diagn

ostic codes - General and manufacturers special use, and display their meaning

(Database has over 3000 generic code definitions)

Clear the error code and shut off the MIL ( "Check Engine" light)

Display current sensor data, comprising:

Engine revolutions per minute (RPM)

The calculated load value

Coolant temperature

Fuel System Status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Injection advance time

Intake air temperature

Air flow rate

Absolute throttle position

Oxygen-sensing voltage associated with the short-term fuel state

Fuel System Status

The fuel pressure

Fuel consumption monitoring and many other data ......

Supports OBDII protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

Viecar Wireless BT4.0 is no longer simply a screen information display system, but through stunning head-up display (HUD)：

Let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

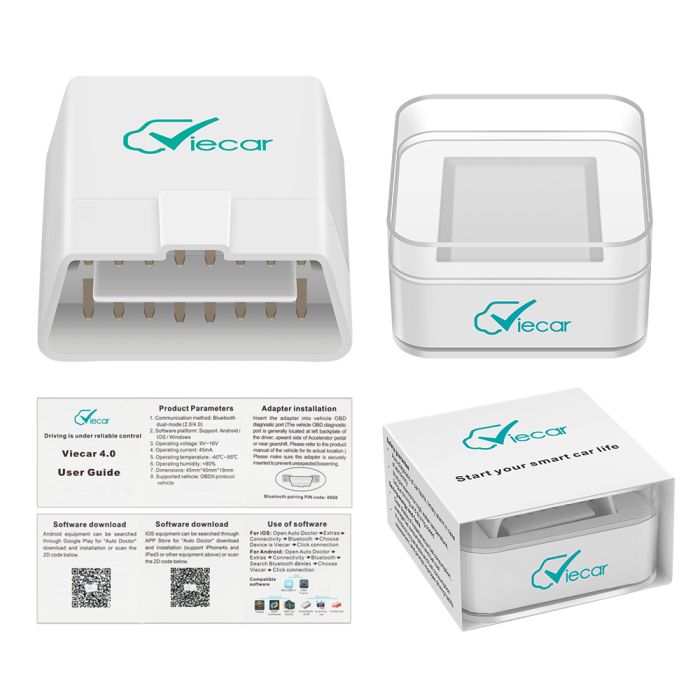

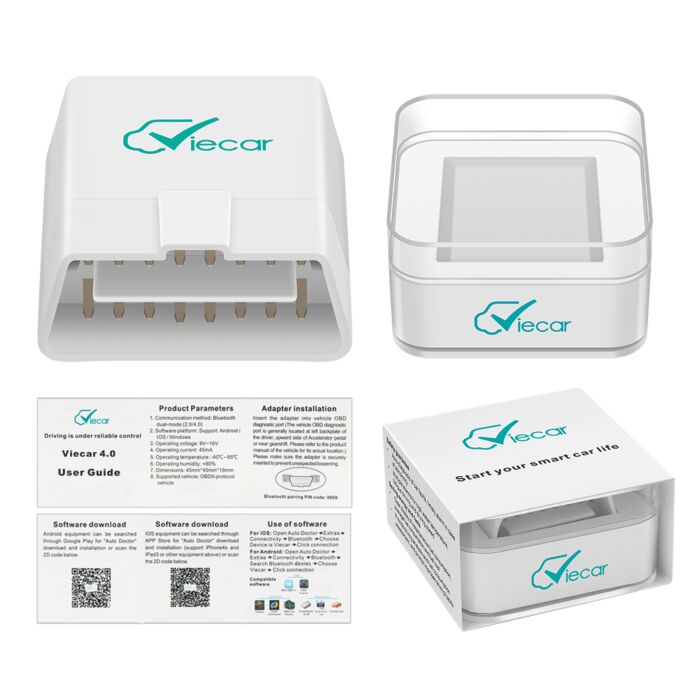

Package list

1 X Viecar 4.0 Wireless BT4.0

1 X User Manual
