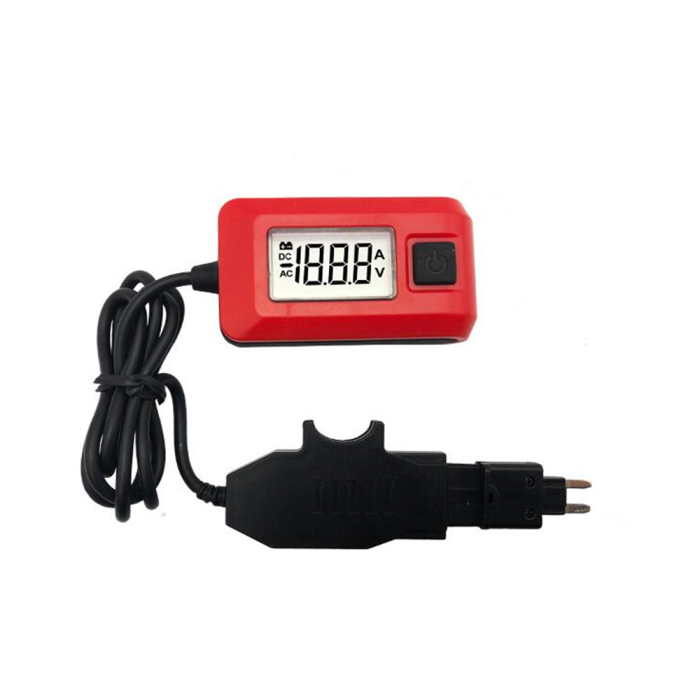

AE150 Auto Current Tester Multimeter Lamp Car Repair tool Fuse Diagnostic Tool
Description / AE150 Auto Current Tester Multimeter Lamp Car Repair tool Fuse Diagnostic Tool
Specitification:
Measurement range:0.01A~19.99A
Max Load:20A/48Vdc for max.10 secs
Accuracelectrical circuity: ±(2% of reading + 2 digits)
Fuse typePower Supply:standard
Power Supply:12V 23A
Operating Condition:Temperature 0°C~40°C,relative humidity<75%
Storage Condition:temperature -10°C~50°C,relative humidity<80%
Operation Instruction:
1.Turn off the vehicles' engine.
2. Take out the fuse and put it in slot of the AE150. Please make sure the circuit
protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
3. Insert the plug of the tester into the vehicle fuse socket.
4. If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
5.Under test, operate the circuit and the display will show the measured current.
6. Turn off the tester by pressing the power button again when you finish the measurement.
Package include:
1PCS*Car Auto Current Tester
