DY25 6-42V Automotive Cable Wire Tracker, Short & Open Circuit Finder Tester
Description / DY25 6-42V Automotive Cable Wire Tracker, Short & Open Circuit Finder Tester
Description :
1.Function: check short circuit, locating open circuit, wire identification, wire tracing,etc.
2.DY25 Automotive short and open circuit tester cable wire tracer repair tool Tester car tracer Tone line diagnostics Finder

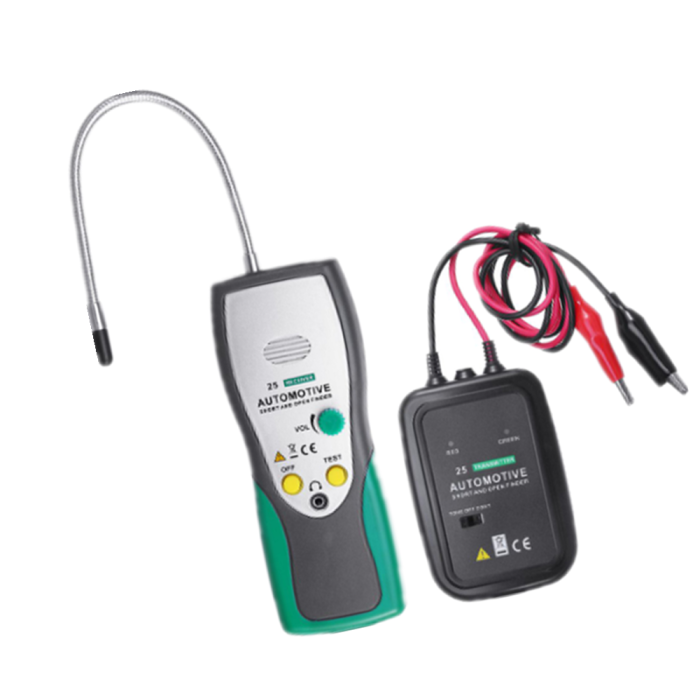

This tool can check cable break points, find short circuit cables, and identify and track wires without damaging the insulation. This tool consists of a transmitter and a receiver.
3. OPERATION INSTRUCTION Checking For Short Circuit * Shut off the power under testing * Set the switch of Transmitter to "CONT", connect the Test Leads to the wires that is to be checked. * If the resistance < 10k ohm, the LED of "CONT" will be Green. It indicates that the wires are in short circuit
4. FEATURES * It is possible to trace wires which are even inside bundles,conduits,behind panels, under carpets, upholstery,etc. * Flexible probe allows to reach to wires in congested places. * No wire piercing required,non-contact technology. * Internally protects against power surges and overloads.
PACKING LIST:
DY25 Sender 1 pcs
DY25 Receiver 1 pcs
