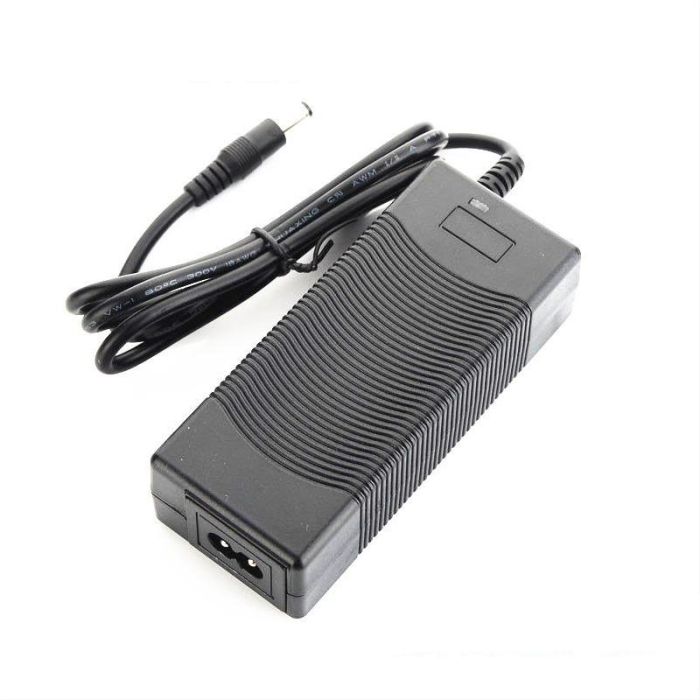

LiitoKala 4S 16.8V 2A Lithium-ion Battery Pack Universal Fast charger

Specitification:

Charging voltage 16.8V indicator light is green when no load

Charging voltage range The highest voltage is not higher than 17V. The constant current phase voltage is random, but not higher than 16.8V.

Output current 2A When the constant current is charged, the indicator light is red

After the conversion current is 200mA, the indicator light is green.

Ripple and noise (Note 3) <100mVp-p (constant voltage)

Line adjustment rate (Note 4) ±0.8%

Load regulation rate (Note 5) ±1%

DC output power 36W

Efficiency >85% (maximum output voltage, full load)

DC voltage adjustable range 0-16.8V

Input voltage range 100~240VAC; 47~63Hz; 140-350VDC

Input current 0.03A/230V

Inrush current Cold start current 2A/230V

Leakage current <3.5mA

Overload protection 105%~150% Type: FOLDBACK current limit output Reset: automatic recovery

Temperature coefficient ±0.03% °C (0 to 50 °C) OUTPUT

Start, rise, hold time 200ms, 50ms, 30ms

Shock resistance 10-500Hz, 2G 10min./1 cycle, duration 60 minutes, each axis

Pressure resistance Input--output: 1.5KVAC

Isolation resistance Input and output: 10M Ohms

Working temperature, humidity -10 ° C ~ +50 ° C, 20% ~ 90% RH

Storage temperature, temperature -10 ° C ~ +60 ° C, 20% ~ 90% RH

Dimensions 115×48×30mm

Package include:

1pcs charger
